Made in Germany - All bikes are manufactured with passion in Waltrop, Germany
therapy wheels

handbike

Our infinitely adjustable tricycle with hand cranks suitable for everyday use
01

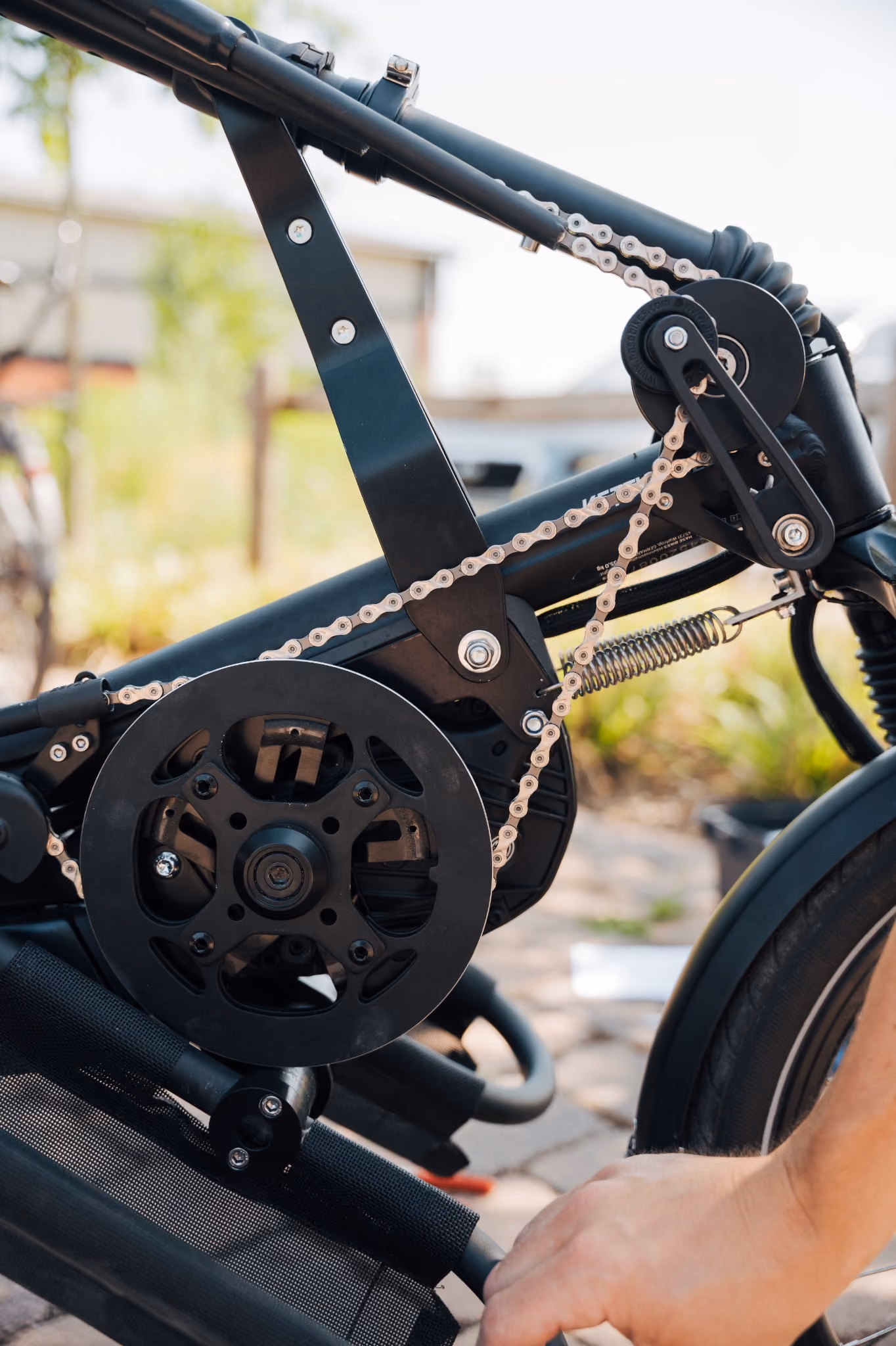

Makes sporty to relaxed cycling possible without pedals and optionally with an electric drive
02

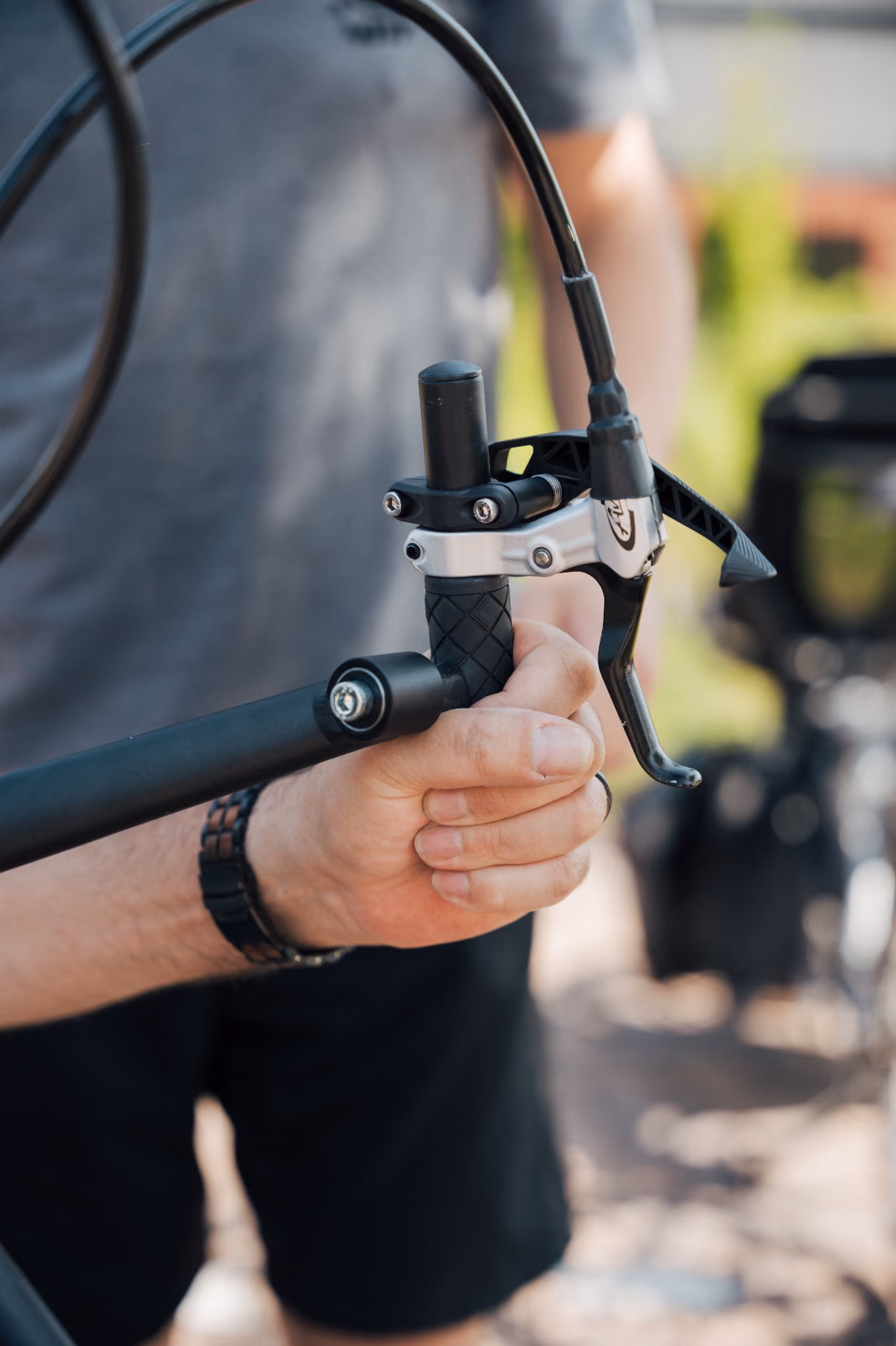

Specially developed overhead arm forms a balanced drive unit with hand cranks and chain
03

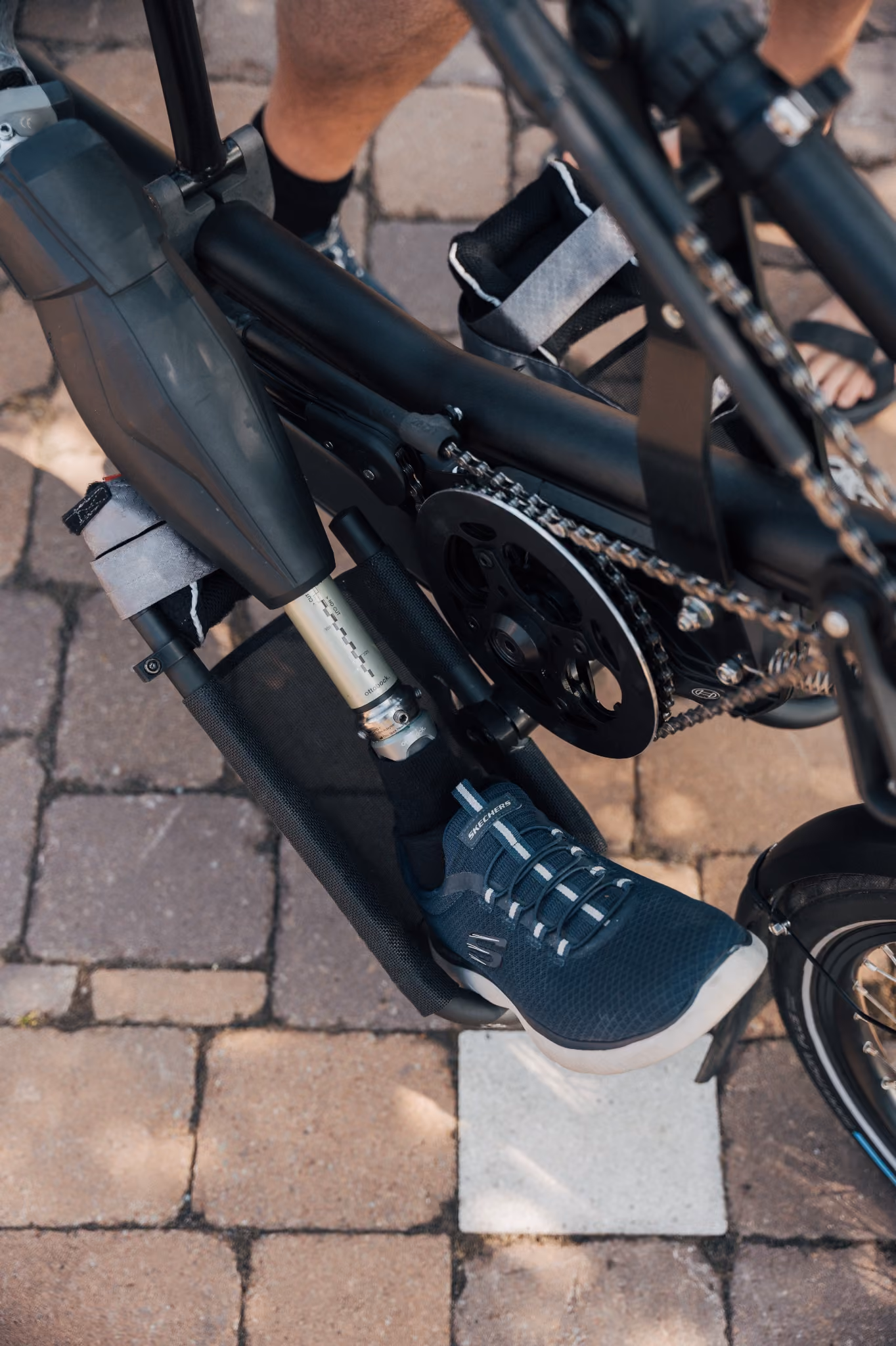

Adjustable leg rests support and protect
04
Moving from a wheelchair to a raised seat effortlessly and without tilting
Therapierad

Handbike

Unser stufenlos verstellbares, alltagstaugliches Dreirad mit Handkurbeln

Handbike

RAL 3002 Karminrot

Kettwiesel ONE with under-seat steering

Palegreen RAL 6021

Kettwiesel ONE with above-seat steering

Grey beige RAL 1019

ONE to inspire

New: Kettwiesel ONE

Facts at a glance

telescopic

highly sensitive suspension travel

24 kg

weight

140 kg

Maximum payload

50, 60 or 85 Nm

Torque

8 or 14 gears

either Nexus, Enviolo or Rohloff hub gear

20"

Tire size

individual equipment

Our rehab accessories

Here you can find useful equipment for your needs, from frame springs to brake couplings to luggage accessories

Ergonomics

Easiest to use

The geometry of the frame and the seat on the Kettwiesel ONE can be personalised and easily adjusted to heights from 1.10 m to 2.00 m. The rider doesn’t need tobe a technical expert to adjust the trike and these options allow the rider tobe in a relaxing position and offer the highest level of safety when riding. The low bottom bracket makes it noticeably easier to pedal. Mounting and dismounting is simple on the above-seat steering version with upward folding steering unit and the under-seat steering design with an integrated frame on the steering unit to assist with standing.

Comfort

Finest construction

The core element of the Kettwiesel ONE is the  ultra-modern MacPherson suspension, which has already proven its worth many  times in vehicle technology. Our biologically inspired and low maintenance  unit for steering, highly sensitive suspension and shock absorbers ensure  that every bump on the road is absorbed. Thanks to the size of the tools  fitted on the trike, little effort is required to adjust the suspension with 70 mm suspension travel to a total combined weight of up to 140 kg (not including the trike) to guarantee a comfortable riding experience.

transportation

Smallest pack size

The length of the frame and handlebars can be smoothly adjusted by hand in a fewsimple steps, which allows the frame to be easily pushed together forhassle-free transportation in a standard vehicle. The handlebars can fold downand both handlebar variants fold in and fold down. With a weight of only 35 kg, a compact pack size (without front wheel: 135 cm length, 88 cm width and 56 cm or 66 cm height for ONE with over-seat steering) and the practical option to park the trike upright, the Kettwiesel ONE is perfect for daily use.

Kettwiesel ONE low bottom bracketKettwiesel ONE chassisKettwiesel ONE in the trunk
Configurations for Handbike
Kettwiesel ONE downlink
View equipment
framework
Aluminium
total length
62.99 - 80.71 inches (160 - 205 cm)
overall width
33.86 inches (86 cm)
total height
37.4 inches (95 cm)
fork
Aluminium
maximum payload
309 lb (140 kg)
weight
53 lb (24 kg)
circuitry
8-speed Nexus gear hub
running wheels
20" / black aluminum double-walled rims / SAPIM stainless-steel spokes / comfort tires
paint
carmine red, semi-gloss
brake system
coupled brakes / right lever for hydraulic rear-wheel brakes / with parking-brake mechanism under the seat
lights
Shutter Precision hub dynamo / Herrmans Black MR8 50 LUX? headlight / ?B+M Toplight 2C plus taillight
fenders
SKS matte black
crank set
HASE BIKES 174 mm
Battery
Pedelec motor
